26-2000 Series Venting Pressure Regulator

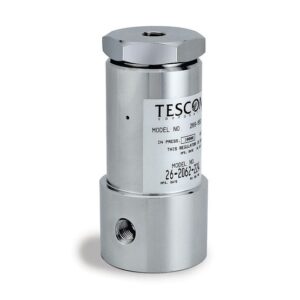

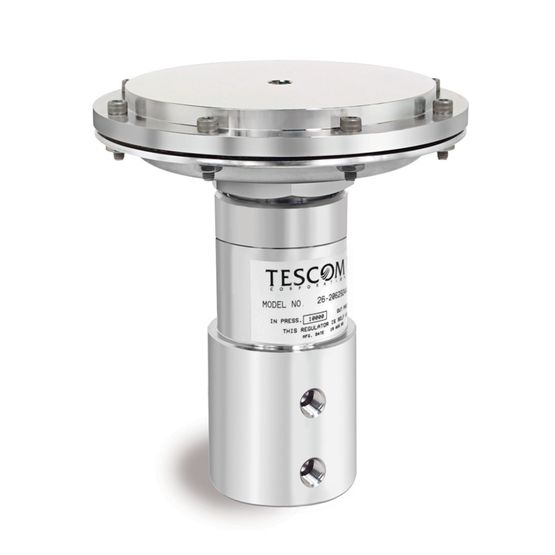

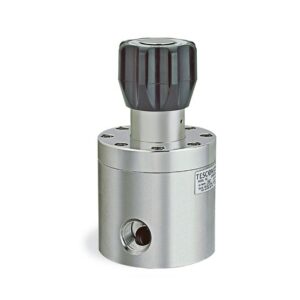

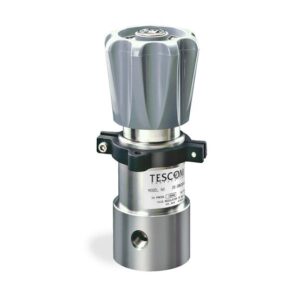

26-2000 Series high pressure, low flow piston sensed regulator is available in dome, spring and air load versions. This regulator comes with segregated captured venting standard with inlet pressure ratings of 6000-15,000 psig / 413-1034 bar. Ideal for use in R & D labs, pressure filling, calibration testing, burst testers, component testing and high pressure hydraulic or pneumatic applications.

Pressure Rating
Maximum Inlet Pressure and Maximum Outlet Pressure: See Part Number Selector
Body: 316 Stainless Steel or Brass
Seat, Vent, Main Valve, O-Ring: See Part Number Selector
Back-up Ring: Teflon®
  26-201XX-XX: Bronze
26-202XX-XX: 300 Series Stainless Steel
Remaining Parts
316 Stainless Steel and 17-4 Stainless Steel
Operating Temperature
-15°F to 165°F / -26°C to 73°C
Port Size & Type
1/4, 3/8, 1/2
SAE, NPTF, MS33649, High Pressure/Aminco, Medium Pressure/Slimline
Vent Port: 1/4 SAE, 1/4 NPTF, 1/4 MS33649
Flow Capacity
Cv = 0.02, 0.06, 0.12, or 0.30
Load Type
Spring, Dome, Air
Weight (approximately)
5.5 lbs / 2.5 kg
