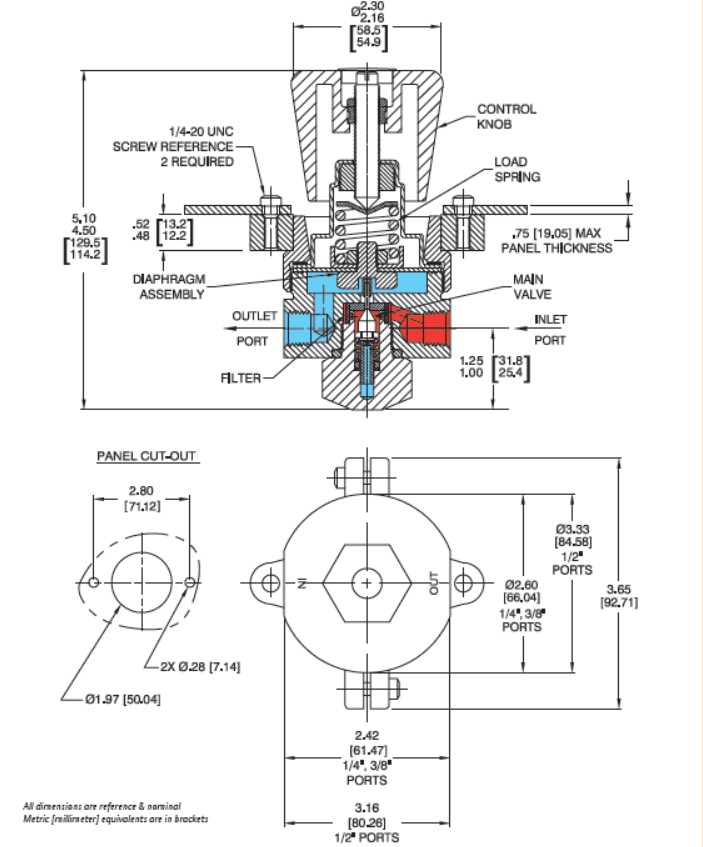

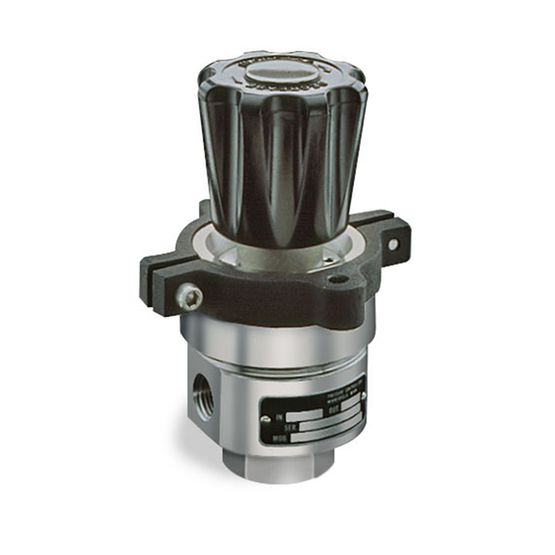

26-1500 Series non-venting regulator offers a sensitive, large elastomeric diaphragm design and precision outlet pressure control. Ideal for use in research labs, breathing air diving manifolds, low flow purge systems, gas and liquid sampling.
Maximum Inlet Pressure
Stainless Steel: 6000 psig / 414 bar
Brass, Aluminum: 5000 psig / 345 bar
Outlet Pressure Ranges
0-50, 0-150, 0-250 psig / 0-3.4, 0-10.3, 0-17.2 bar
Body Material
316 Stainless Steel, Brass, Aluminum
Bonnet Material
300 Series Stainless Steel
40 Micron Filter Material
316 Stainless Steel
Seat Material
CTFE
O-Rings & Diaphragm Material
Buna-N
Remaining Parts Material
300 Series Stainless Steel
Ambient Operating Temperature and Fluid Media Temperature
